--- a/任务/周报.md
+++ b/任务/周报.md
@ -1,7 +1,17 @@
+## 20250106 - 20250110
+- [ ] 集简云对接
+  - 基础架子搭建
+  - 接口对接
+
 ## 20241230 - 20250103

 - [X] 完成 yapi oidc 验证
-  - [ ] [YAPI-OIDC文档]()
+  1. - [X] 源码构建及错误处理
+  2. - [X] Docker镜像构建
+  3. - [X] OIDC 插件安装
+  4. - [X] [YApi部署指南](http://confluence.qifu.com/pages/viewpage.action?pageId=38507970)
+- [X] JenkinsSSO [接入文档](http://confluence.qifu.com/pages/viewpage.action?pageId=38507984)
+- [X] 面试

 ## 20241223 - 20241227

--- a/教程/20250102-YEARNING安装.md
+++ b/教程/20250102-YEARNING安装.md
@ -1,21 +0,0 @@
-## YEARNING
-
-### YEARNING 安装启动
-
-可以参考：https://next.yearning.io/zh/usage/ixah25xr/
-
-```shell
-
-```
-
-### YEARNING OIDC 配置
-
-可以参考：https://next.yearning.io/zh/usage/boccobus/
-
-```shell
-
-```
-
-## 参考
-
- [YAPI安装教程](https://blog.csdn.net/IT_ZRS/article/details/118642997)
--- a/教程/20250104-Linkwarden部署指南.md
+++ b/教程/20250104-Linkwarden部署指南.md
@ -0,0 +1,31 @@
+<!-- Space: qifu -->
+<!-- Parent: 后端技术&知识&规范 -->
+<!-- Parent: 技术方案 -->
+<!-- Parent: 基建 -->
+<!-- Title: 20250104-Linkwarden部署指南 -->
+
+<!-- Macro: :anchor\((.*)\):
+     Template: ac:anchor
+     Anchor: ${1} -->
+<!-- Macro: \!\[.*\]\((.+)\)\<\!\-\- width=(.*) \-\-\>
+     Template: ac:image
+     Url: ${1}
+     Width: ${2} -->
+<!-- Macro: \<\!\-\- :toc: \-\-\>
+     Template: ac:toc
+     Printable: 'false'
+     MinLevel: 2
+     MaxLevel: 4 -->
+<!-- Include: 杂项/声明文件.md -->
+
+<!-- :toc: -->
+
+# Jenkins SAML 插件整合 Keycloak 配置指南
+
+- [Self-Host安装](https://docs.linkwarden.app/self-hosting/installation)
+- [SSO配置](https://docs.linkwarden.app/self-hosting/sso-oauth#keycloak)
+
+
+## 参考
+
+- [Linkwarden](https://docs.linkwarden.app/)
--- a/教程/20250107-Yearning安装及SSO接入指南.md
+++ b/教程/20250107-Yearning安装及SSO接入指南.md
@ -0,0 +1,237 @@
+<!-- Space: qifu -->
+<!-- Parent: 后端技术&知识&规范 -->
+<!-- Parent: 技术方案 -->
+<!-- Parent: 基建 -->
+<!-- Title: 20250107-Yearning安装及SSO接入指南 -->
+
+<!-- Macro: :anchor\((.*)\):
+     Template: ac:anchor
+     Anchor: ${1} -->
+<!-- Macro: \!\[.*\]\((.+)\)\<\!\-\- width=(.*) \-\-\>
+     Template: ac:image
+     Url: ${1}
+     Width: ${2} -->
+<!-- Macro: \<\!\-\- :toc: \-\-\>
+     Template: ac:toc
+     Printable: 'false'
+     MinLevel: 2
+     MaxLevel: 4 -->
+<!-- Include: 杂项/声明文件.md -->
+
+<!-- :toc: -->
+
+# Yearning 安装及 SSO 接入指南
+
+## Yearning 安装启动
+可以参考：https://next.yearning.io/zh/usage/ixah25xr/
+
+### Docker Compose
+#### `docker-compose.yml` 文件
+```yaml
+version: '3'
+
+services:
+    yearning:
+        image: yeelabs/yearning:v3.1.5
+        environment:
+           MYSQL_USER: yearning
+           MYSQL_PASSWORD: ukC2ZkcG_ZTeb
+           MYSQL_ADDR: mysql
+           MYSQL_DB: yearning
+           SECRET_KEY: dbcjqheupqjsuwsm
+           IS_DOCKER: is_docker
+        ports:
+           - 8000:8000
+        volumes:
+          - ./opt/conf.toml:/opt/conf.toml
+        # 首次使用请先初始化
+        # command: /bin/bash -c "./Yearning install && ./Yearning run"
+        depends_on:
+           - mysql
+        restart: always
+
+    mysql:
+        image: mysql:5.7
+        environment:
+           MYSQL_ROOT_PASSWORD: ukC2ZkcG_ZTeb
+           MYSQL_DATABASE: yearning
+           MYSQL_USER: yearning
+           MYSQL_PASSWORD: ukC2ZkcG_ZTeb
+        command:
+           - --character-set-server=utf8mb4
+           - --collation-server=utf8mb4_general_ci
+        volumes:
+           - ./data/mysql:/var/lib/mysql
+
+# 默认账号：admin，默认密码：Yearning_admin
+```
+#### `conf.toml` 文件
+```java
+[Mysql]
+Db = "Yearning"
+Host = "127.0.0.1"
+Port = "3306"
+Password = ""
+User = "root"
+
+[General]
+SecretKey = "dbcjqheupqjsuwsm"
+Hours = 4
+Lang="zh_CN"
+
+[Oidc]
+Enable = false
+ClientId = "${keycloak的客户端ID}"
+ClientSecret = "${keycloak的客户端Secret}"
+Scope = "openid profile"
+AuthUrl = "${issuer链接}/protocol/openid-connect/auth"
+TokenUrl = "${issuer链接}/protocol/openid-connect/token"
+UserUrl = "${issuer链接}/protocol/openid-connect/userinfo"
+RedirectUrL = "${yearning的地址}/oidc/_token-login"
+UserNameKey = "preferred_username"
+RealNameKey = "name"
+EmailKey = "email"
+SessionKey = "session_state"
+```
+
+### Yearning OIDC 配置
+可以参考：https://next.yearning.io/zh/usage/boccobus/
+
+#### 修改 `conf.toml`（Keycloak示例）
+```java
+[Oidc]
+Enable = true
+ClientId = "${keycloak的客户端ID}"
+ClientSecret = "${keycloak的客户端Secret}"
+Scope = "openid profile"
+AuthUrl = "${issuer链接}/protocol/openid-connect/auth"
+TokenUrl = "${issuer链接}/protocol/openid-connect/token"
+UserUrl = "${issuer链接}/protocol/openid-connect/userinfo"
+RedirectUrL = "${yearning的地址}/oidc/_token-login"
+UserNameKey = "preferred_username"
+RealNameKey = "name"
+EmailKey = "email"
+SessionKey = "session_state"
+```
+- ${keycloak的客户端ID}：例如 `yearning`
+- ${keycloak的客户端Secret}: Keycloak中获取
+- ${issuer链接}: Keycloak 中获取
+- ${yearning的地址}：yearning 请求地址
+
+### 异常处理
+- 如果出现异常，可以排查 `Yearning` 服务和 `Keycloak` 服务是否可以访问通畅。
+- 或者说 `Yearning` SSO 配置中的链接在 `Yearning` 所在服务中是否可以正常访问
+
+
+## 本地构建启动（参考）
+- Yearning `3.1.9.1`
+- 系统 `Ubuntu24.04`
+- nodejs `v18.20.5`
+- npm `10.8.2`
+- go `go version go1.22.10 linux/amd64`
+
+### 安装 GO
+#### 下载安装
+- 下载 go：https://go.dev/dl/
+```shell
+# 解压
+tar -zxf go1.22.10.linux-amd64.tar.gz
+
+# 移动
+mv go /usr/local/go
+
+# 配置环境变量
+vi /etc/profile
+####-/etc/profile start
+export GOROOT=/usr/local/go
+export PATH=$PATH:$GOROOT/bin
+####-/etc/profile end
+
+# 使配置生效
+source /etc/profile
+
+# 查看是否成功
+go version
+```
+
+#### 配置 go proxy
+参考：https://goproxy.cn/
+```shell
+go env -w GO111MODULE=on
+
+go env -w GOPROXY=https://goproxy.cn,direct
+```
+
+### 安装 Node
+#### 下载安装
+- 下载 nodejs：https://nodejs.org/en/download/
+```shell
+# 解压
+xz -d node-v18.20.5-linux-x64.tar.xz
+tar tar -xf node-v18.20.5-linux-x64.tar
+
+# 移动
+mv node-v18.20.5-linux-x64 /usr/local/nodejs
+
+# 配置环境变量
+vi /etc/profile
+####-/etc/profile start
+export GOROOT=/usr/local/go
+export NODE_HOME=/usr/local/nodejs
+export PATH=$PATH:$GOROOT/bin:$NODE_HOME/bin
+####-/etc/profile end
+
+# 验证安装
+node -v
+
+npm -v
+```
+
+### Yearning 源码安装
+- 工作目录: `/usr/local/workspace`
+#### 获取 Yearning
+```shell
+git clone https://github.com/cookieY/Yearning.git
+```
+#### 获取 Yearning 前端
+```shell
+git clone https://github.com/cookieY/gemini-next.git
+```
+#### 编译前端代码
+```shell
+# 进入目录
+cd /usr/local/workspace/gemini-next
+#-安装
+npm install --registry https://registry.npmmirror.com
+#-构建
+npm run build --registry https://registry.npmmirror.com
+
+#- 将目标文件移动到源文件目录
+mv dist /usr/local/workspace/Yearning/src/service/
+```
+
+#### 编译后端代码
+```shell
+cd /usr/local/workspace/Yearning
+
+go mod tidy
+
+cp conf.toml.template conf.toml
+
+# 修改 配置文件
+vi conf.toml
+
+# 初始化（第一次需要）
+# go run main.go install
+
+# 启动
+go run main.go run
+```
+- 启动报错，chat/* xxx
+  - `vi src/service/yearning.go`
+  - 删除报错提示的行相关的代码
+
+## 参考
+
+- [Yearning安装教程](https://next.yearning.io/zh/usage/ptbzchak/)
+- [使用go语言编译部署最新版Yearning【v3.0.1】](https://blog.csdn.net/qq_44930876/article/details/125679454)
--- a/方案/20250106-集简云对接方案.md
+++ b/方案/20250106-集简云对接方案.md
@ -0,0 +1,102 @@
+<!-- Space: qifu -->
+<!-- Parent: 后端技术&知识&规范 -->
+<!-- Parent: 技术方案 -->
+<!-- Parent: 基建 -->
+<!-- Title: 20250106-集简云对接方案 -->
+
+<!-- Macro: :anchor\((.*)\):
+     Template: ac:anchor
+     Anchor: ${1} -->
+<!-- Macro: \!\[.*\]\((.+)\)\<\!\-\- width=(.*) \-\-\>
+     Template: ac:image
+     Url: ${1}
+     Width: ${2} -->
+<!-- Macro: \<\!\-\- :toc: \-\-\>
+     Template: ac:toc
+     Printable: 'false'
+     MinLevel: 2
+     MaxLevel: 4 -->
+<!-- Include: 杂项/声明文件.md -->
+
+<!-- :toc: -->
+
+
+# 集简云对接方案
+
+## 一、现状
+
+### 业务背景
+
+需要对接和拉取ERP和电商平台订单
+
+## 二、需求
+
+### 业务需求
+
+需要对接和拉取ERP和电商平台订单
+
+## 三、设计目标
+
+### 实现的功能
+
+- ERP订单拉取
+  - 领星ERP
+  - 聚水潭
+  - 易仓
+  - 马帮
+- 电商平台订单拉取
+  - Amazon
+  - Tiktok
+  - Ebay
+  - Shopee
+  - Lazada
+
+## 四、整体设计
+

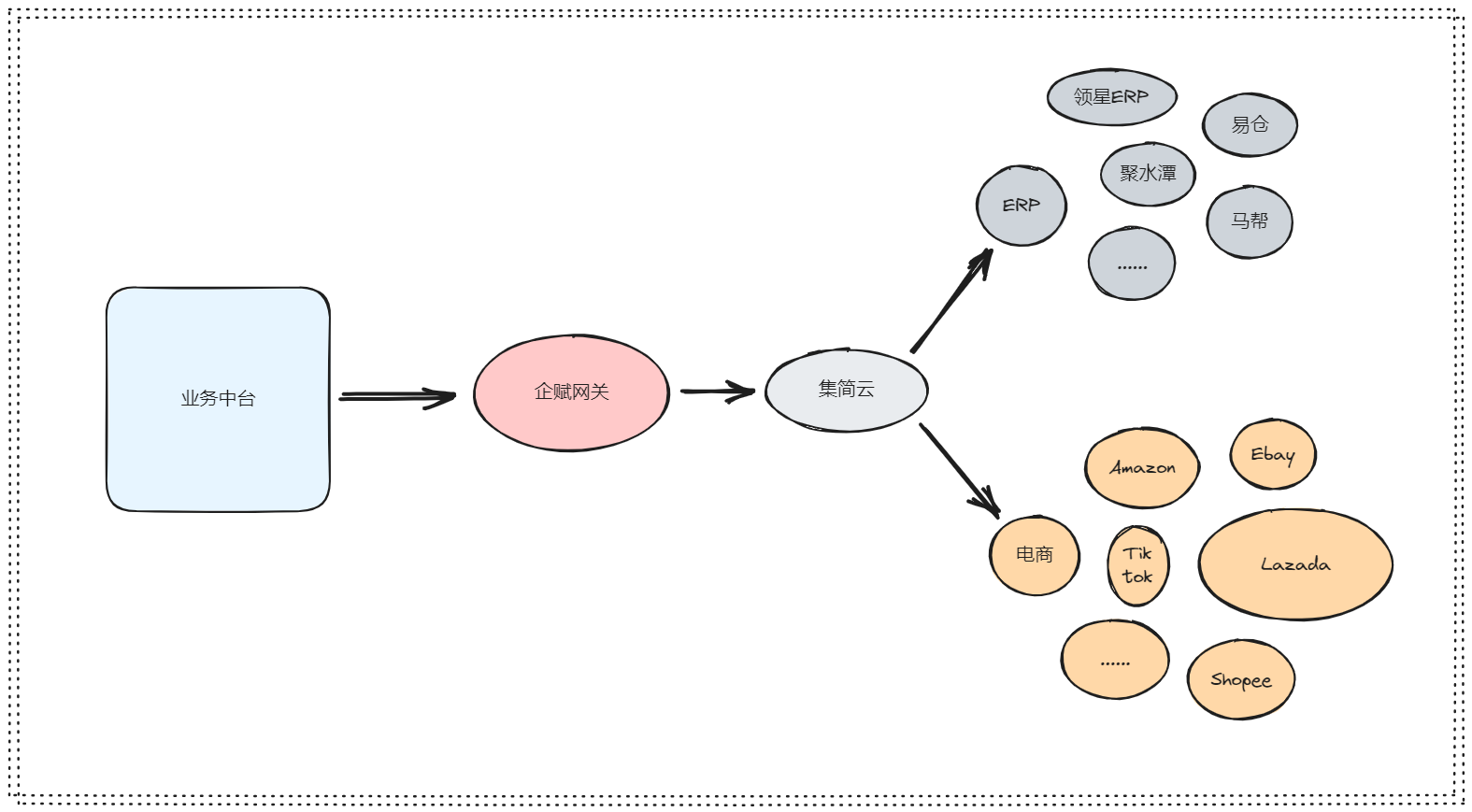

+### 整体架构
+
+![](https://picture.texous.cn/blog/20250106142814939.png)
+
+### 交互流程

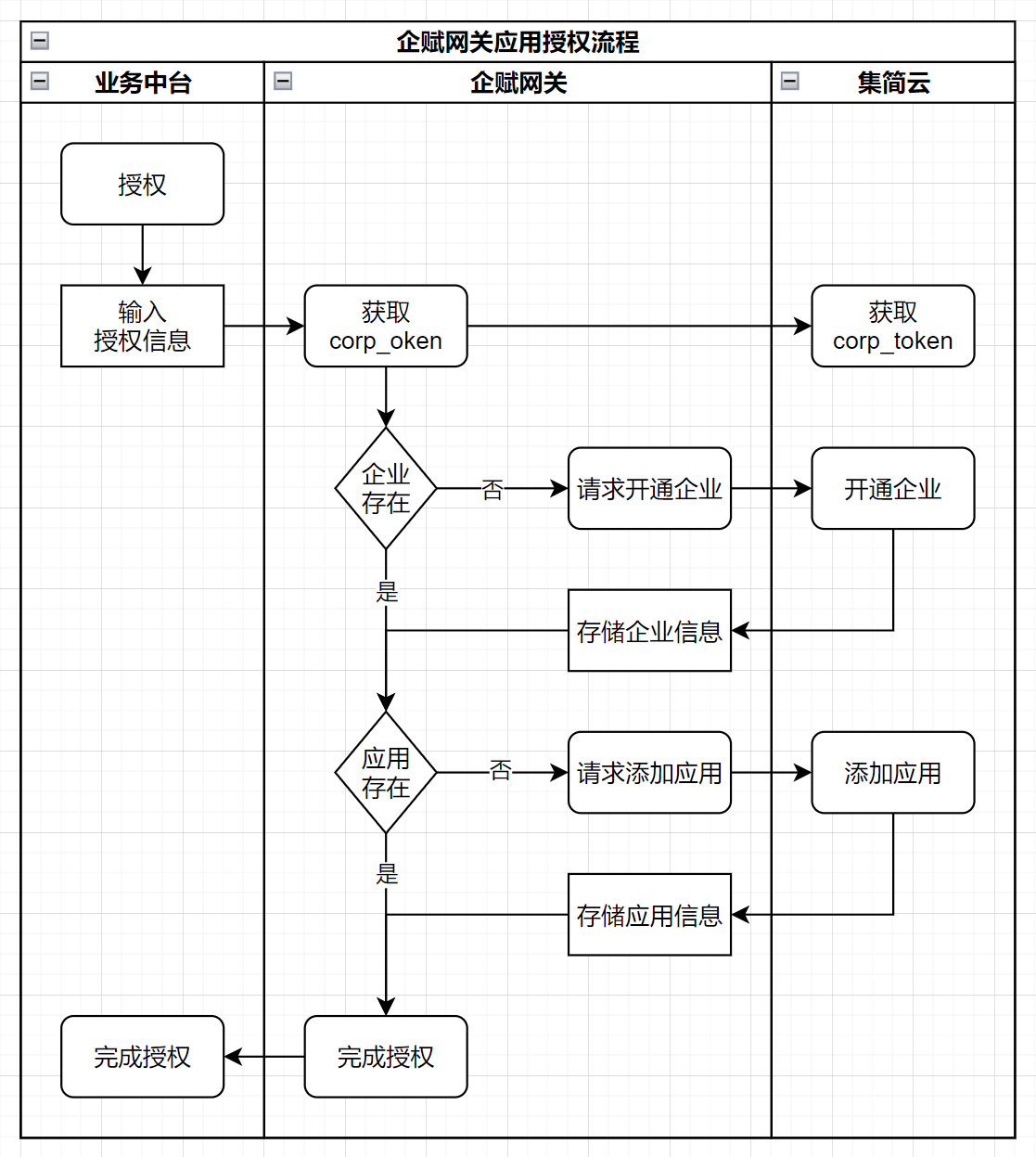

+#### 应用授权流程
+![](https://picture.texous.cn/blog/20250106145111478.png)
+

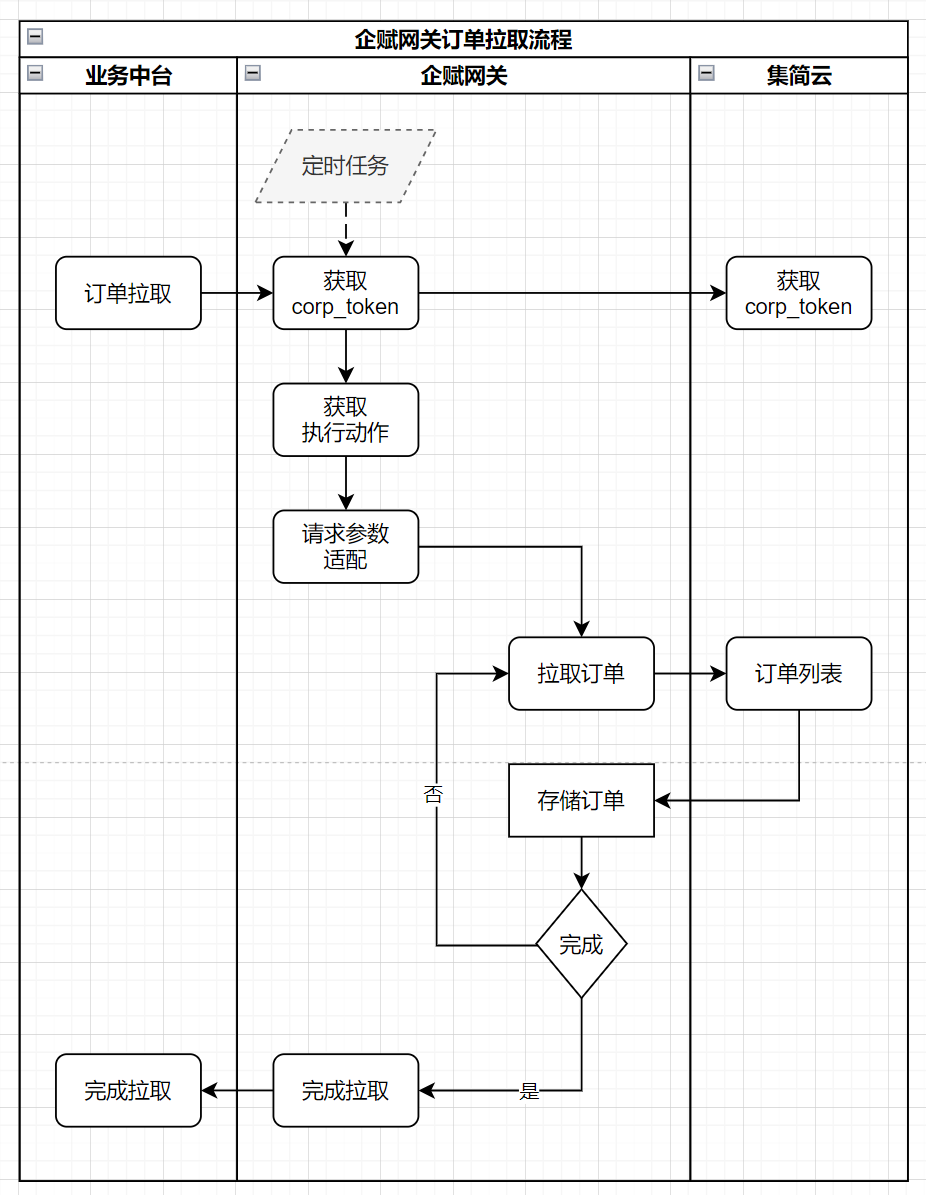

+#### 订单拉取流程
+![](https://picture.texous.cn/blog/20250106152557525.png)
+
+## 五、详细设计
+
+### 功能模块设计
+
+### 潜在风险
+- 订单信息回传暂时没找到渠道
+- 集简云对接需要付费
+
+## 六、工作量和排期
+
+### 开发时间
+
+### 联调时间
+
+### 提测时间
+
+### 上线时间
+
+## 七、设计评审意见
+
+## 八、参考文档
+
+- [Okta](https://www.okta.com/)
+- [CAS 单点登录部署](https://blog.csdn.net/xu_guo_jie/article/details/104209452)
+- [集成文档参考](https://docs.authing.cn/v2/integration/?category=all&page=2)
+- [CAS Server](https://github.com/apereo/cas)
+- [CAS 整合 LDAP](https://www.doc88.com/p-0774845211878.html)
+- [CAS](https://zhuanlan.zhihu.com/p/610470663)
+- [OIDC](https://zhuanlan.zhihu.com/p/539297736)
+- [LDAP](https://zhuanlan.zhihu.com/p/608437013)
+- [IAM单点登录之CAS协议分析](https://zhuanlan.zhihu.com/p/627920220)
+- [Keycloak](https://www.keycloak.org/)
+- [Keycloak OIDC](https://www.keycloak.org/securing-apps/oidc-layers)
+- [Keycloak 默认 Provider 配置](https://www.keycloak.org/docs/latest/server_admin/index.html#default_identity_provider)
+- [Keycloak custom theme](https://springdoc.cn/spring-keycloak-custom-themes/)
+- [Keycloak custom theme](https://blog.csdn.net/q1ngqingsky/article/details/123417611)
--- a/杂项/20250106-备忘.md
+++ b/杂项/20250106-备忘.md
@ -0,0 +1,15 @@
+## 集简云
+
+- corp_id: 3GUjL9MIoBYYXJetxI0wEUdmvbk1K6Le
+- secret: tY1XBKjjzZQXkyZXply35hL36dTFJzI7
+
+### APP 相关
+
+| APP   | APP_KEY | ACTION    | ACTION_KEY |
+|-------|---------|-----------|------------|
+| 领星ERP | 1001686 | 查询亚马逊店铺信息 | 1008458    |
+|       |         | 查询亚马逊订单列表 | 1008460    |
+|       |         | 查询亚马逊订单详情 | 1008461    |
+| 聚水潭   | 1000215 | 查询店铺列表    | 1015873    |
+|       |         | 查询订单列表    | 1015869    |
+|       |         | 查询店铺列表    | 1015873    |
--- a/杂项/test.json
+++ b/杂项/test.json
--- a/绘图/20250106-集简云对接技术架构.excalidraw
+++ b/绘图/20250106-集简云对接技术架构.excalidraw
--- a/绘图/20250106-集简云对接技术流程.drawio
+++ b/绘图/20250106-集简云对接技术流程.drawio
@ -0,0 +1,137 @@
+<mxfile host="Electron" agent="Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) draw.io/25.0.2 Chrome/128.0.6613.186 Electron/32.2.5 Safari/537.36" version="25.0.2">
+  <diagram id="23iRSUPoRavnBvh4doch" name="Page-1">
+    <mxGraphModel dx="1562" dy="1037" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="827" pageHeight="1169" math="0" shadow="0">
+      <root>
+        <mxCell id="0" />
+        <mxCell id="1" parent="0" />
+        <mxCell id="RBETg45X8NGVP7TbEJGc-1" value="企赋网关应用授权流程" style="swimlane;html=1;childLayout=stackLayout;resizeParent=1;resizeParentMax=0;startSize=20;whiteSpace=wrap;" vertex="1" parent="1">
+          <mxGeometry x="80" y="160" width="490" height="550" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-2" value="业务中台" style="swimlane;html=1;startSize=20;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-1">
+          <mxGeometry y="20" width="120" height="530" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-19" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-2" source="RBETg45X8NGVP7TbEJGc-5" target="RBETg45X8NGVP7TbEJGc-7">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-5" value="授权" style="rounded=1;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-2">
+          <mxGeometry x="20" y="40" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-7" value="输入&lt;div&gt;授权信息&lt;/div&gt;" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-2">
+          <mxGeometry x="20" y="110" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-18" value="完成授权" style="rounded=1;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-2">
+          <mxGeometry x="20" y="470" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-3" value="企赋网关" style="swimlane;html=1;startSize=20;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-1">
+          <mxGeometry x="120" y="20" width="250" height="530" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-21" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-3" source="RBETg45X8NGVP7TbEJGc-8" target="RBETg45X8NGVP7TbEJGc-10">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-8" value="获取corp_oken" style="rounded=1;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-3">
+          <mxGeometry x="20" y="110" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-9" value="请求开通企业" style="rounded=1;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-3">
+          <mxGeometry x="150" y="190" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-22" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-3" source="RBETg45X8NGVP7TbEJGc-10" target="RBETg45X8NGVP7TbEJGc-9">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-23" value="否" style="edgeLabel;html=1;align=center;verticalAlign=middle;resizable=0;points=[];" vertex="1" connectable="0" parent="RBETg45X8NGVP7TbEJGc-22">
+          <mxGeometry x="-0.1809" y="-1" relative="1" as="geometry">
+            <mxPoint as="offset" />
+          </mxGeometry>
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-26" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-3" source="RBETg45X8NGVP7TbEJGc-10" target="RBETg45X8NGVP7TbEJGc-13">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-27" value="是" style="edgeLabel;html=1;align=center;verticalAlign=middle;resizable=0;points=[];" vertex="1" connectable="0" parent="RBETg45X8NGVP7TbEJGc-26">
+          <mxGeometry x="-0.1353" relative="1" as="geometry">
+            <mxPoint y="-14" as="offset" />
+          </mxGeometry>
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-10" value="&lt;span style=&quot;background-color: initial;&quot;&gt;企业&lt;/span&gt;&lt;div&gt;&lt;span style=&quot;background-color: initial;&quot;&gt;存在&lt;/span&gt;&lt;/div&gt;" style="rhombus;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-3">
+          <mxGeometry x="35" y="180" width="50" height="60" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-34" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-3" source="RBETg45X8NGVP7TbEJGc-12" target="RBETg45X8NGVP7TbEJGc-13">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-12" value="存储企业信息" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-3">
+          <mxGeometry x="150" y="260" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-28" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-3" source="RBETg45X8NGVP7TbEJGc-13" target="RBETg45X8NGVP7TbEJGc-14">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-29" value="否" style="edgeLabel;html=1;align=center;verticalAlign=middle;resizable=0;points=[];" vertex="1" connectable="0" parent="RBETg45X8NGVP7TbEJGc-28">
+          <mxGeometry x="-0.0536" y="1" relative="1" as="geometry">
+            <mxPoint as="offset" />
+          </mxGeometry>
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-32" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-3" source="RBETg45X8NGVP7TbEJGc-13" target="RBETg45X8NGVP7TbEJGc-17">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-33" value="是" style="edgeLabel;html=1;align=center;verticalAlign=middle;resizable=0;points=[];" vertex="1" connectable="0" parent="RBETg45X8NGVP7TbEJGc-32">
+          <mxGeometry x="-0.2008" relative="1" as="geometry">
+            <mxPoint y="-16" as="offset" />
+          </mxGeometry>
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-13" value="&lt;span style=&quot;background-color: initial;&quot;&gt;应用&lt;/span&gt;&lt;div&gt;&lt;span style=&quot;background-color: initial;&quot;&gt;存在&lt;/span&gt;&lt;/div&gt;" style="rhombus;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-3">
+          <mxGeometry x="35" y="320" width="50" height="60" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-14" value="请求添加应用" style="rounded=1;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-3">
+          <mxGeometry x="150" y="330" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-35" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-3" source="RBETg45X8NGVP7TbEJGc-16" target="RBETg45X8NGVP7TbEJGc-17">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-16" value="存储应用信息" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-3">
+          <mxGeometry x="150" y="400" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-17" value="完成授权" style="rounded=1;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-3">
+          <mxGeometry x="20" y="470" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-4" value="集简云" style="swimlane;html=1;startSize=20;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-1">
+          <mxGeometry x="370" y="20" width="120" height="530" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-11" value="开通企业" style="rounded=1;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-4">
+          <mxGeometry x="20" y="190" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-15" value="添加应用" style="rounded=1;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-4">
+          <mxGeometry x="20" y="330" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-37" value="获取corp_token" style="rounded=1;whiteSpace=wrap;html=1;" vertex="1" parent="RBETg45X8NGVP7TbEJGc-4">
+          <mxGeometry x="20" y="110" width="80" height="40" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-20" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-1" source="RBETg45X8NGVP7TbEJGc-7" target="RBETg45X8NGVP7TbEJGc-8">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-24" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-1" source="RBETg45X8NGVP7TbEJGc-9" target="RBETg45X8NGVP7TbEJGc-11">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-25" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-1" source="RBETg45X8NGVP7TbEJGc-11" target="RBETg45X8NGVP7TbEJGc-12">
+          <mxGeometry relative="1" as="geometry">
+            <Array as="points">
+              <mxPoint x="430" y="300" />
+            </Array>
+          </mxGeometry>
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-30" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-1" source="RBETg45X8NGVP7TbEJGc-14" target="RBETg45X8NGVP7TbEJGc-15">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-31" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-1" source="RBETg45X8NGVP7TbEJGc-15" target="RBETg45X8NGVP7TbEJGc-16">
+          <mxGeometry relative="1" as="geometry">
+            <Array as="points">
+              <mxPoint x="430" y="440" />
+            </Array>
+          </mxGeometry>
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-36" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-1" source="RBETg45X8NGVP7TbEJGc-17" target="RBETg45X8NGVP7TbEJGc-18">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+        <mxCell id="RBETg45X8NGVP7TbEJGc-38" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;" edge="1" parent="RBETg45X8NGVP7TbEJGc-1" source="RBETg45X8NGVP7TbEJGc-8" target="RBETg45X8NGVP7TbEJGc-37">
+          <mxGeometry relative="1" as="geometry" />
+        </mxCell>
+      </root>
+    </mxGraphModel>
+  </diagram>
+</mxfile>
