# 新项目快速初始化教程
|
||||
|
||||
## 使用 Maven Archetype 初始化项目（建议）
|
||||
### 前置配置步骤
|
||||
#### 添加私服骨架配置文件
|
||||
- 建议在本地仓库根目录添加
|
||||
- 存在则增量添加 `archetype`
|
||||
```xml
|
||||
<?xml version="1.0" encoding="UTF-8"?>
|
||||
<archetype-catalog xsi:schemaLocation="http://maven.apache.org/plugins/maven-archetype-plugin/archetype-catalog/1.0.0 http://maven.apache.org/xsd/archetype-catalog-1.0.0.xsd"
|
||||
xmlns="http://maven.apache.org/plugins/maven-archetype-plugin/archetype-catalog/1.0.0"
|
||||
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
|
||||
<archetypes>
|
||||
<archetype>
|
||||
<groupId>com.yuanmeng.engine</groupId>
|
||||
<artifactId>engine-archetype-web</artifactId>
|
||||
<version>2.0.0-SNAPSHOT</version>
|
||||
<description>Parent pom providing dependency and plugin management for applications built with Maven</description>
|
||||
</archetype>
|
||||
</archetypes>
|
||||
</archetype-catalog>
|
||||
|
||||
```
|
||||
|
||||
### IDEA 新建项目
|
||||

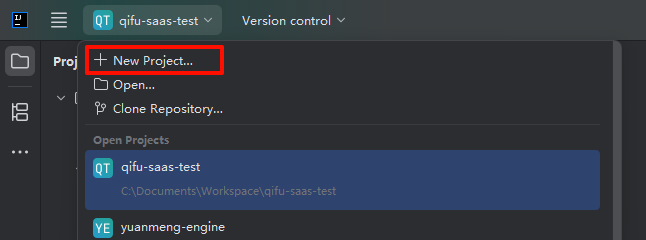

#### IDEA 点击 New Project 创建新项目
|
||||
|
||||

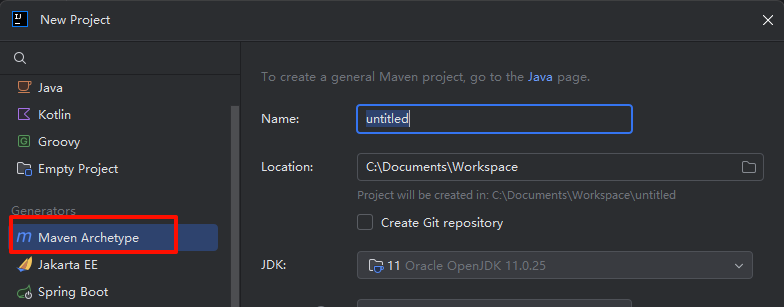

#### 选择 Maven Archetype 项目
|
||||
|
||||

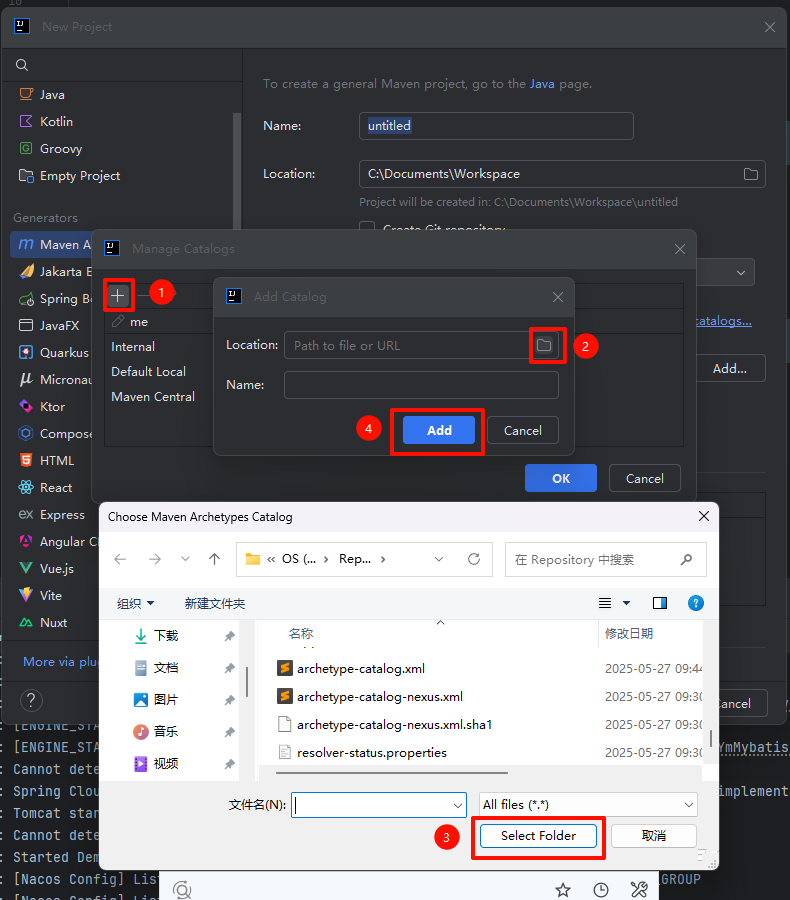

#### 管理添加前置步骤创建的Catalog
|
||||
|
||||
- 点击 `Manage catalogs`
|
||||
- 1: 点击添加
|
||||
- 2: 点击 `文件夹图标` 选择 `archetype-catalog.xml` 所在目录
|
||||
- 3: 选择该文件夹
|
||||
- 4: 点击 Add 添加
|
||||
|
||||

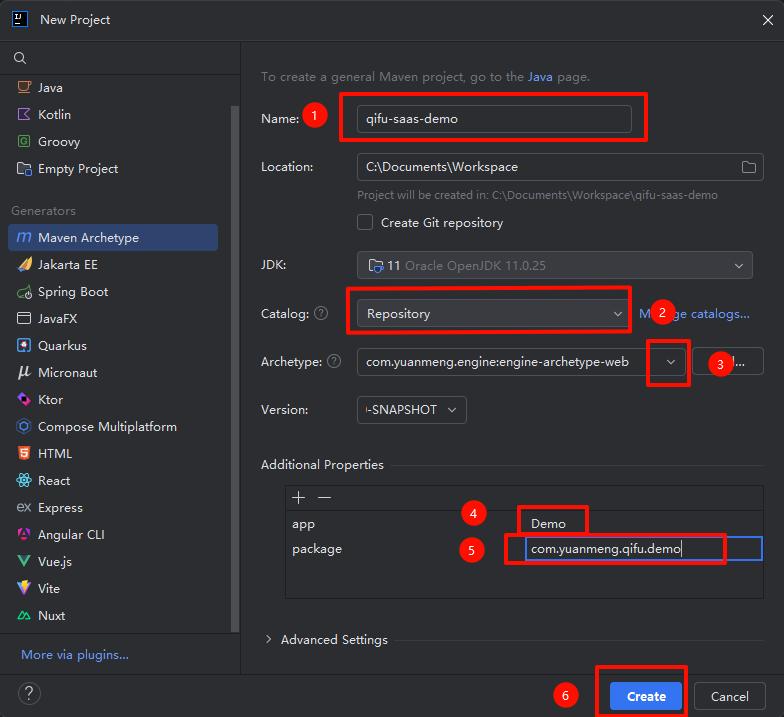

#### 填充信息创建项目
|
||||
-
|
||||
- 1: 项目名称
|
||||
- 2: 选择刚刚添加的 `catalog`
|
||||
- 3: 选择骨架项目 `engine-archetype-web`
|
||||
- 4: 配置服务启动类前缀
|
||||
- 5: 配置服务基础包名
|
||||
- 6: 开始创建
|
||||
|
||||
|
||||

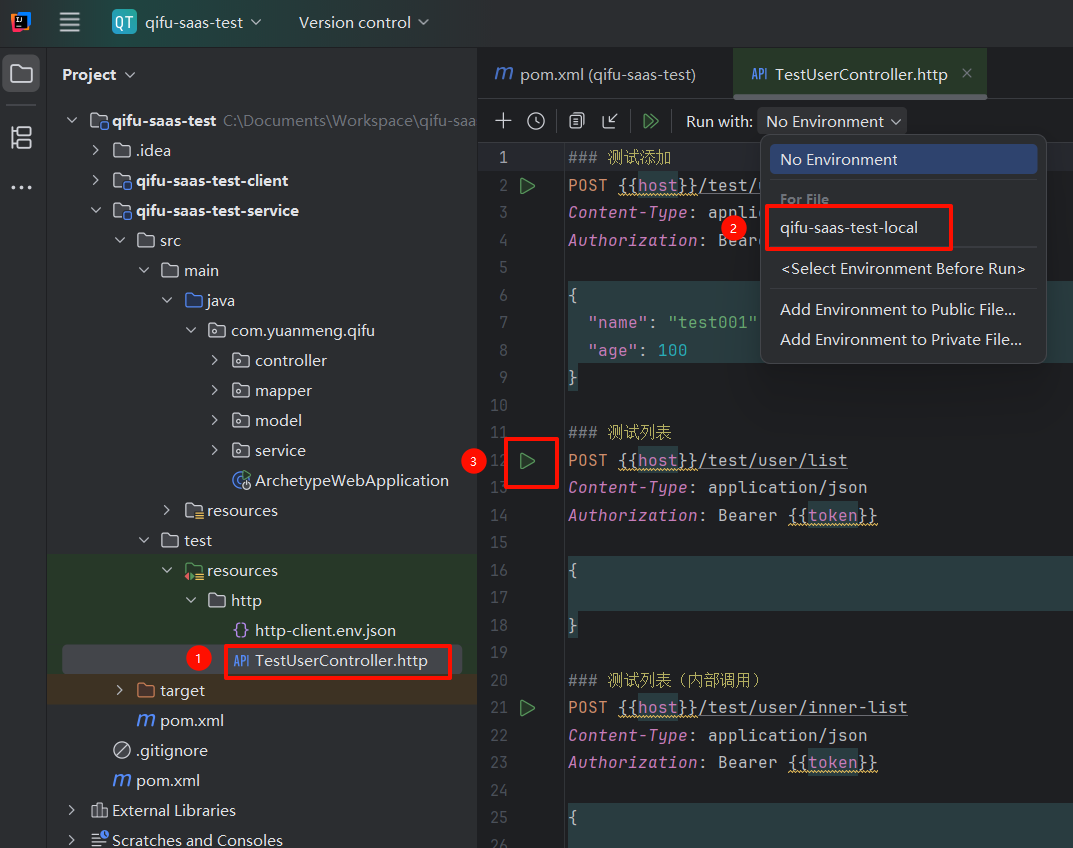

#### 启动项目
|
||||
- 等待项目创建完成
|
||||
- 启动类启动
|
||||
- 使用 `test > resources > http > TestUserController.http` 测试前两个接口
|
||||
-
|
||||
|
||||
------
|
||||
|
||||
## 手工方式初始化项目
|
||||
|
||||
### 新建项目
|
||||
|
||||
#### 项目结构
|
||||
|
||||
- qifu-saas-xxx
|
||||
- qifu-saas-xxx-client
|
||||
- qifu-saas-xxx-service
|
||||
|
||||
### 引入需要的功能包
|
||||
|
||||
#### qifu-saas-xxx > pom.xml
|
||||
|
||||
```xml
|
||||
<?xml version="1.0" encoding="UTF-8"?>
|
||||
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
|
||||
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
|
||||
<modelVersion>4.0.0</modelVersion>
|
||||
<parent>
|
||||
<groupId>com.yuanmeng.qifu</groupId>
|
||||
<artifactId>qifu-saas-parent</artifactId>
|
||||
<version>2.0.0-SNAPSHOT</version>
|
||||
</parent>
|
||||
|
||||
<artifactId>qifu-saas-xxx</artifactId>
|
||||
<version>${revision}</version>
|
||||
<packaging>pom</packaging>
|
||||
<name>qifu-saas-xxx</name>
|
||||
|
||||
<modules>
|
||||
<module>qifu-saas-xxx-client</module>
|
||||
<module>qifu-saas-xxx-service</module>
|
||||
</modules>
|
||||
|
||||
<properties>
|
||||
<!-- 开发版本管理 -->
|
||||
<revision>0.0.1-SNAPSHOT</revision>
|
||||
<qifu.saas.xxx.client.version>0.0.1-SNAPSHOT</qifu.saas.xxx.client.version>
|
||||
</properties>
|
||||
|
||||
<profiles>
|
||||
<profile>
|
||||
<id>development</id>
|
||||
<activation>
|
||||
<activeByDefault>true</activeByDefault>
|
||||
</activation>
|
||||
<properties>
|
||||
</properties>
|
||||
</profile>
|
||||
<profile>
|
||||
<id>production</id>
|
||||
<properties>
|
||||
<!-- 发布版本管理 -->
|
||||
<revision>0.0.1</revision>
|
||||
<qifu.saas.xxx.client.version>0.0.1</qifu.saas.xxx.client.version>
|
||||
</properties>
|
||||
</profile>
|
||||
</profiles>
|
||||
|
||||
<dependencyManagement>
|
||||
<dependencies>
|
||||
<dependency>
|
||||
<groupId>com.yuanmeng.qifu</groupId>
|
||||
<artifactId>qifu-saas-xxx-client</artifactId>
|
||||
<version>${qifu.saas.xxx.client.version}</version>
|
||||
</dependency>
|
||||
</dependencies>
|
||||
</dependencyManagement>
|
||||
</project>
|
||||
|
||||
```
|
||||
|
||||
#### qifu-saas-xxx-client > pom.xml
|
||||
|
||||
```xml
|
||||
<?xml version="1.0" encoding="UTF-8"?>
|
||||
<project xmlns="http://maven.apache.org/POM/4.0.0"
|
||||
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
|
||||
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
|
||||
<modelVersion>4.0.0</modelVersion>
|
||||
<parent>
|
||||
<groupId>com.yuanmeng.qifu</groupId>
|
||||
<artifactId>qifu-saas-xxx</artifactId>
|
||||
<version>${revision}</version>
|
||||
</parent>
|
||||
<artifactId>qifu-saas-xxx-client</artifactId>
|
||||
<dependencies>
|
||||
<dependency>
|
||||
<groupId>com.yuanmeng.engine</groupId>
|
||||
<artifactId>engine-starter-feign</artifactId>
|
||||
</dependency>
|
||||
</dependencies>
|
||||
</project>
|
||||
```
|
||||
|
||||
#### qifu-saas-xxx-service > pom.xml
|
||||
|
||||
```xml
|
||||
<?xml version="1.0" encoding="UTF-8"?>
|
||||
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
|
||||
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
|
||||
<modelVersion>4.0.0</modelVersion>
|
||||
<parent>
|
||||
<groupId>com.yuanmeng.qifu</groupId>
|
||||
<artifactId>qifu-saas-xxx</artifactId>
|
||||
<version>${revision}</version>
|
||||
</parent>
|
||||
|
||||
<artifactId>qifu-saas-xxx-service</artifactId>
|
||||
|
||||
<dependencies>
|
||||
<dependency>
|
||||
<groupId>com.yuanmeng.qifu</groupId>
|
||||
<artifactId>qifu-saas-xxx-client</artifactId>
|
||||
</dependency>
|
||||
|
||||
<dependency>
|
||||
<groupId>com.yuanmeng.engine</groupId>
|
||||
<artifactId>engine-starter-web</artifactId>
|
||||
</dependency>
|
||||
</dependencies>
|
||||
|
||||
</project>
|
||||
|
||||
```
|
||||
|
||||
### 编写启动类
|
||||
|
||||
```java
|
||||
|
||||
@EnableFeignClients(basePackages = {"com.yuanmeng.*"})
|
||||
@EnableDiscoveryClient
|
||||
@SpringBootApplication
|
||||
public class QifuSaasEgApplication {
|
||||
|
||||
public static void main(String[] args) {
|
||||
SpringApplication.run(QifuSaasEgApplication.class, args);
|
||||
}
|
||||
|
||||
}
|
||||
```
|
||||
|
||||
### 编写配置文件
|
||||
|
||||
- `bootstrap.yml`
|
||||
|
||||
```yaml
|
||||
server:
|
||||
port: 10000
|
||||
spring:
|
||||
application:
|
||||
name: qifu-saas-xxx
|
||||
|
||||
cloud:
|
||||
# nacos 配置本地不需要，别的环境会使用运维版本，不需要自己维护
|
||||
nacos:
|
||||
discovery:
|
||||
namespace: qifu-develop
|
||||
server-addr: @discovery.server-addr@
|
||||
username: @discovery.username@
|
||||
password: @discovery.password@
|
||||
register-enabled: false
|
||||
ip: ${spring.application.name}
|
||||
# config:
|
||||
# namespace: @config.namespace@
|
||||
# server-addr: @discovery.server-addr@
|
||||
# username: @discovery.username@
|
||||
# password: @discovery.password@
|
||||
# file-extension: yml
|
||||
# config-retry-time: 30000
|
||||
|
||||
```
|
||||
|
||||
### 启动测试
|
||||
